Drum Brake Wheel Cylinders in Canada

The drum brake wheel cylinder is the hydraulic component that actuates your drum brake shoes every time you press the brake pedal. Brake fluid pressure from the master cylinder enters the wheel cylinder and acts equally on two opposed pistons, pushing them outward simultaneously toward each shoe. A leaking wheel cylinder actively bleeds hydraulic pressure from the brake circuit and contaminates the brake shoes with fluid, both of which directly compromise your ability to stop. A wheel cylinder leak is not a gradual problem; it requires immediate attention.

How a Drum Brake Wheel Cylinder Works

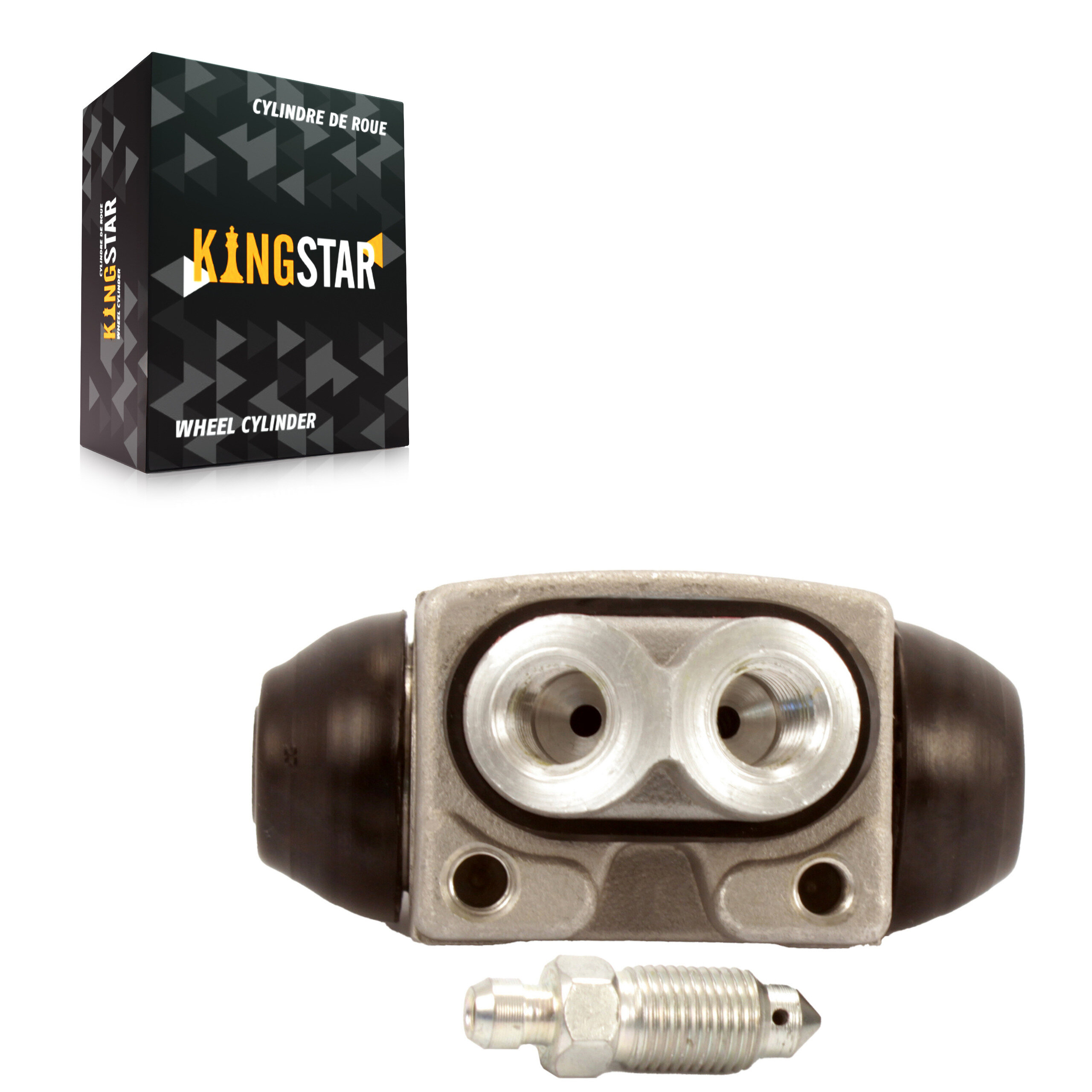

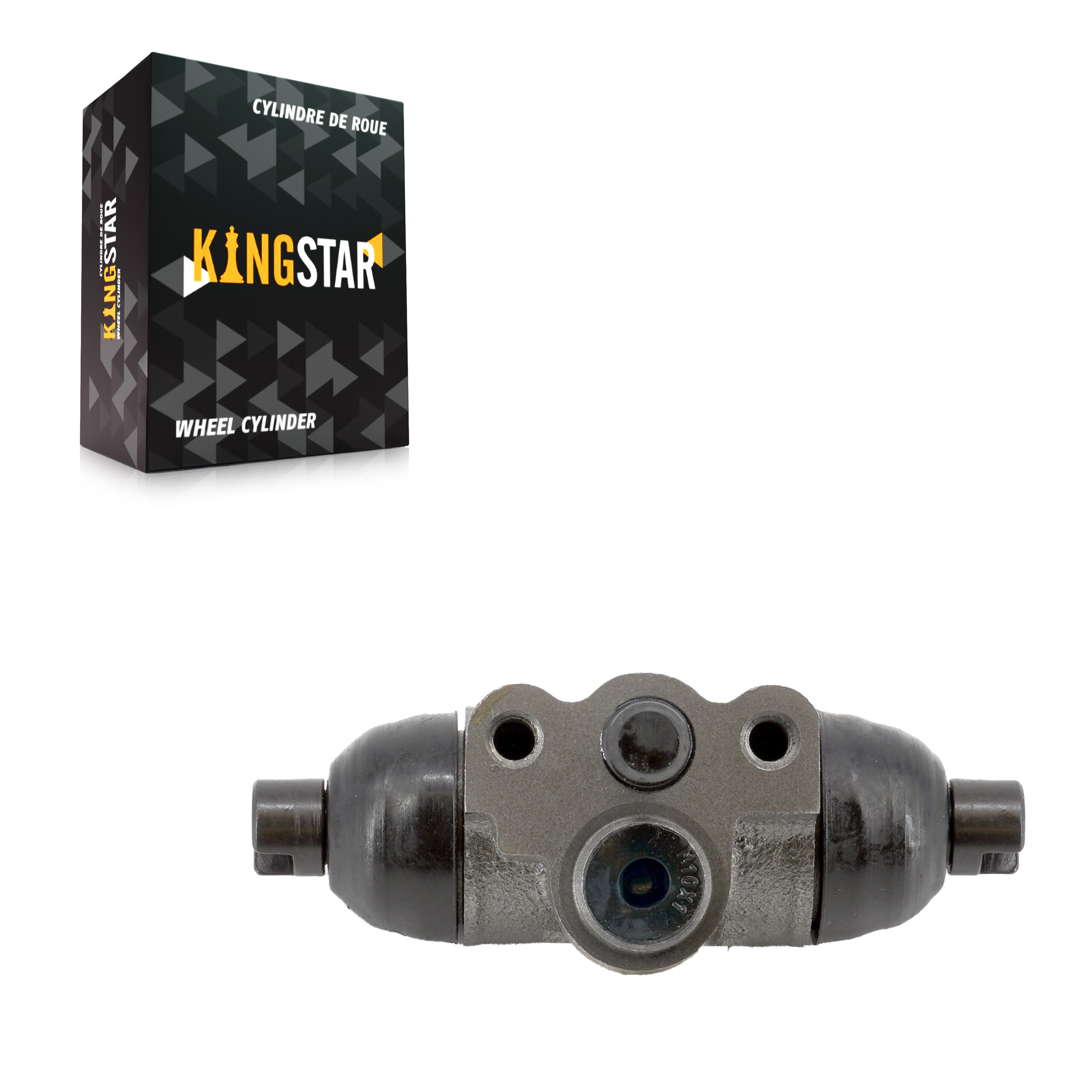

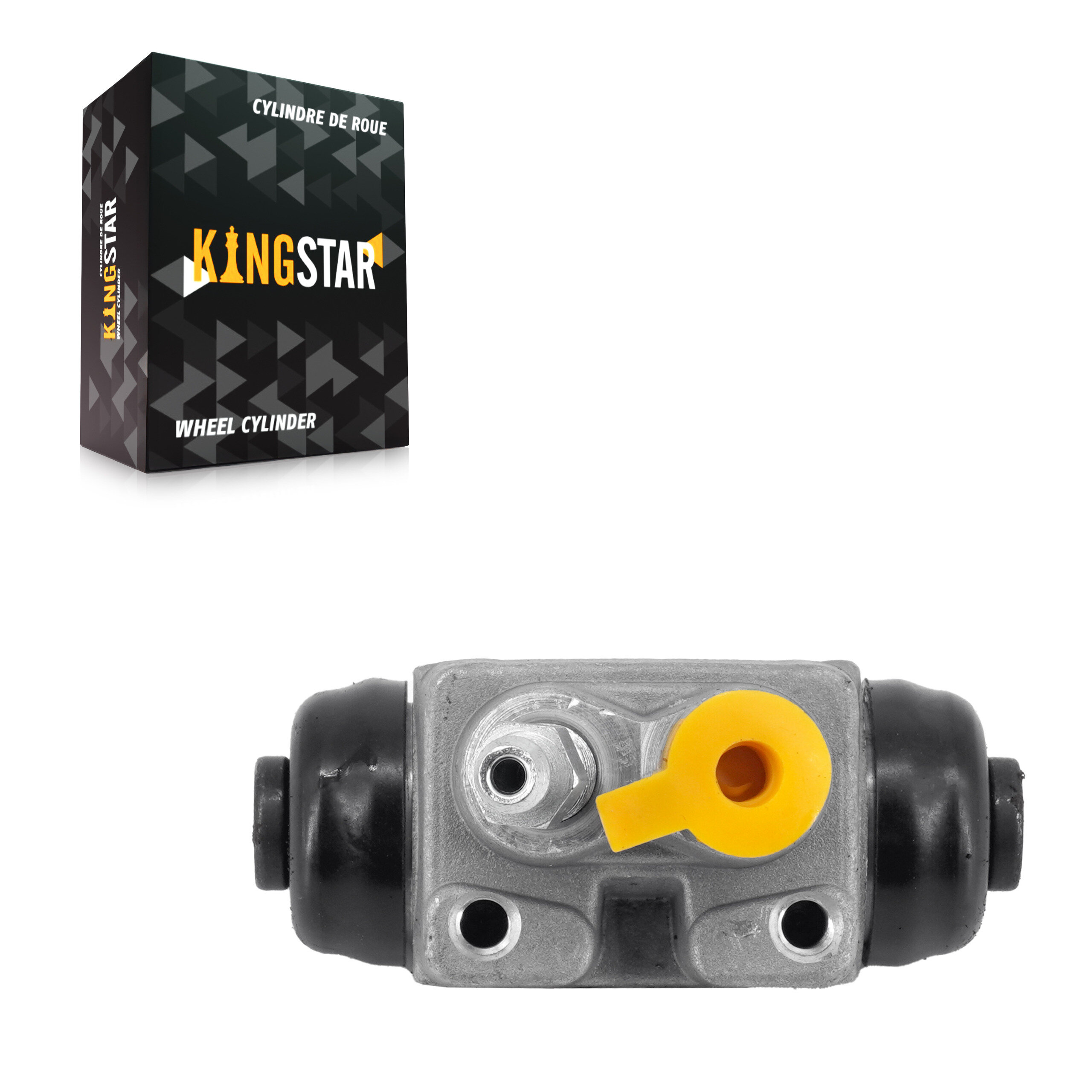

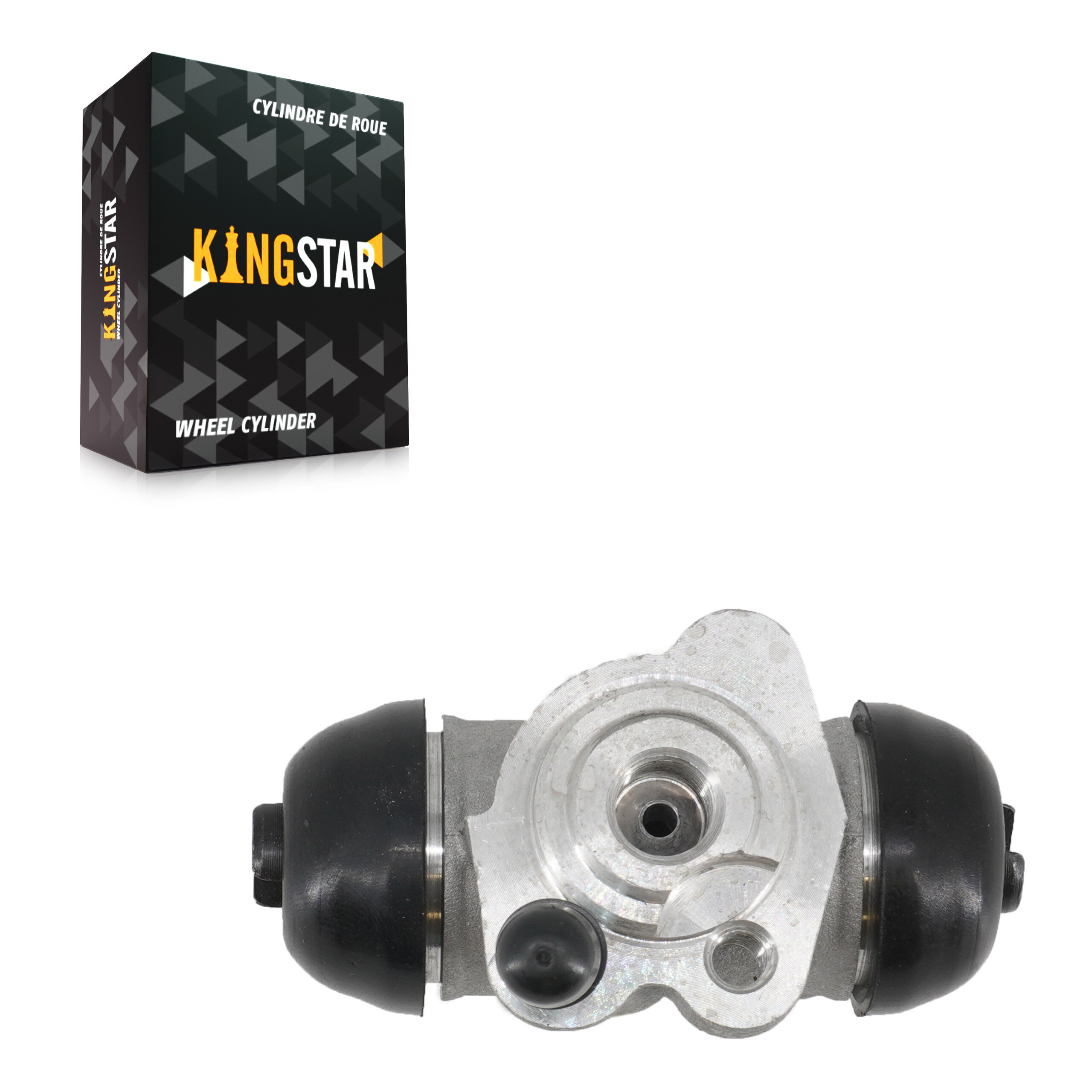

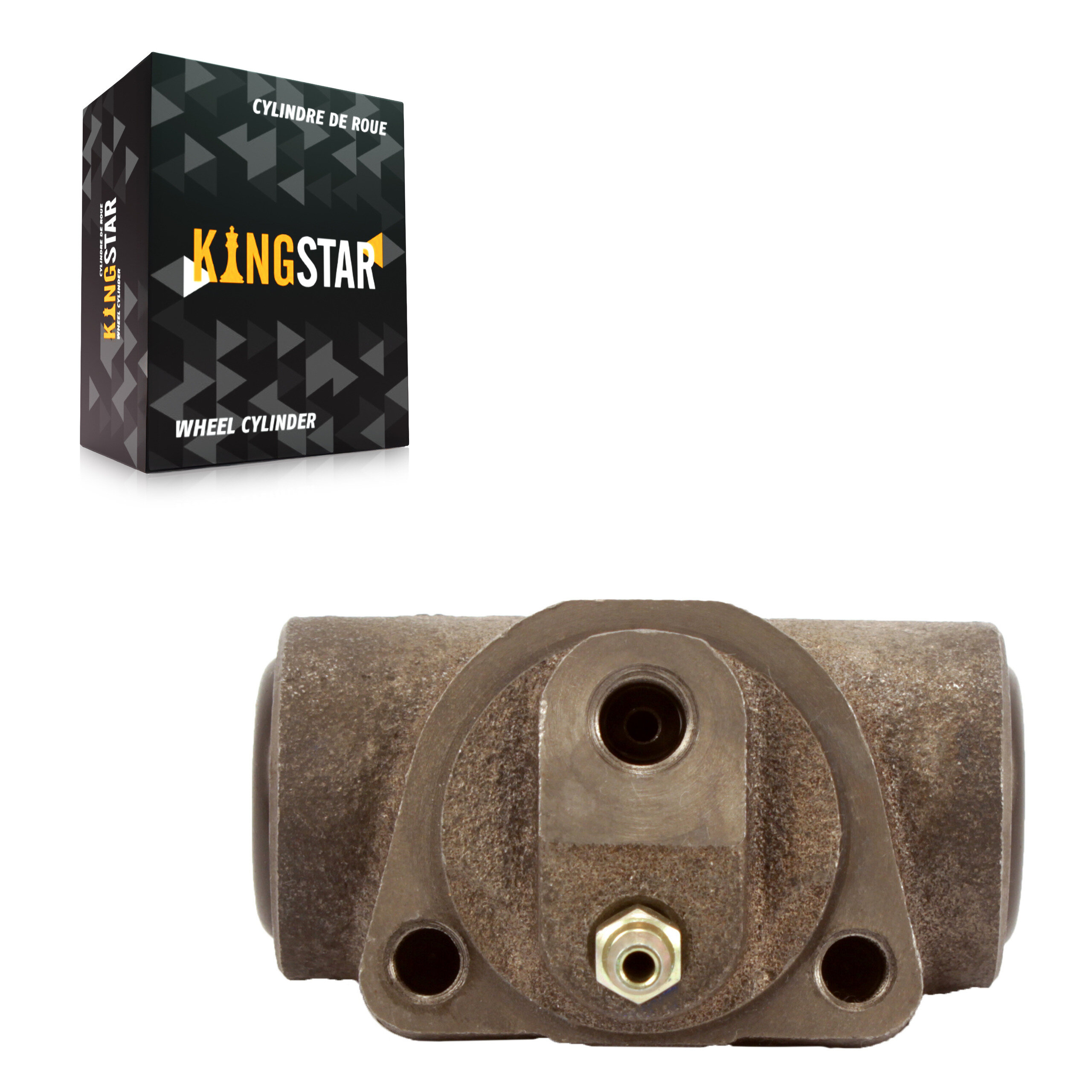

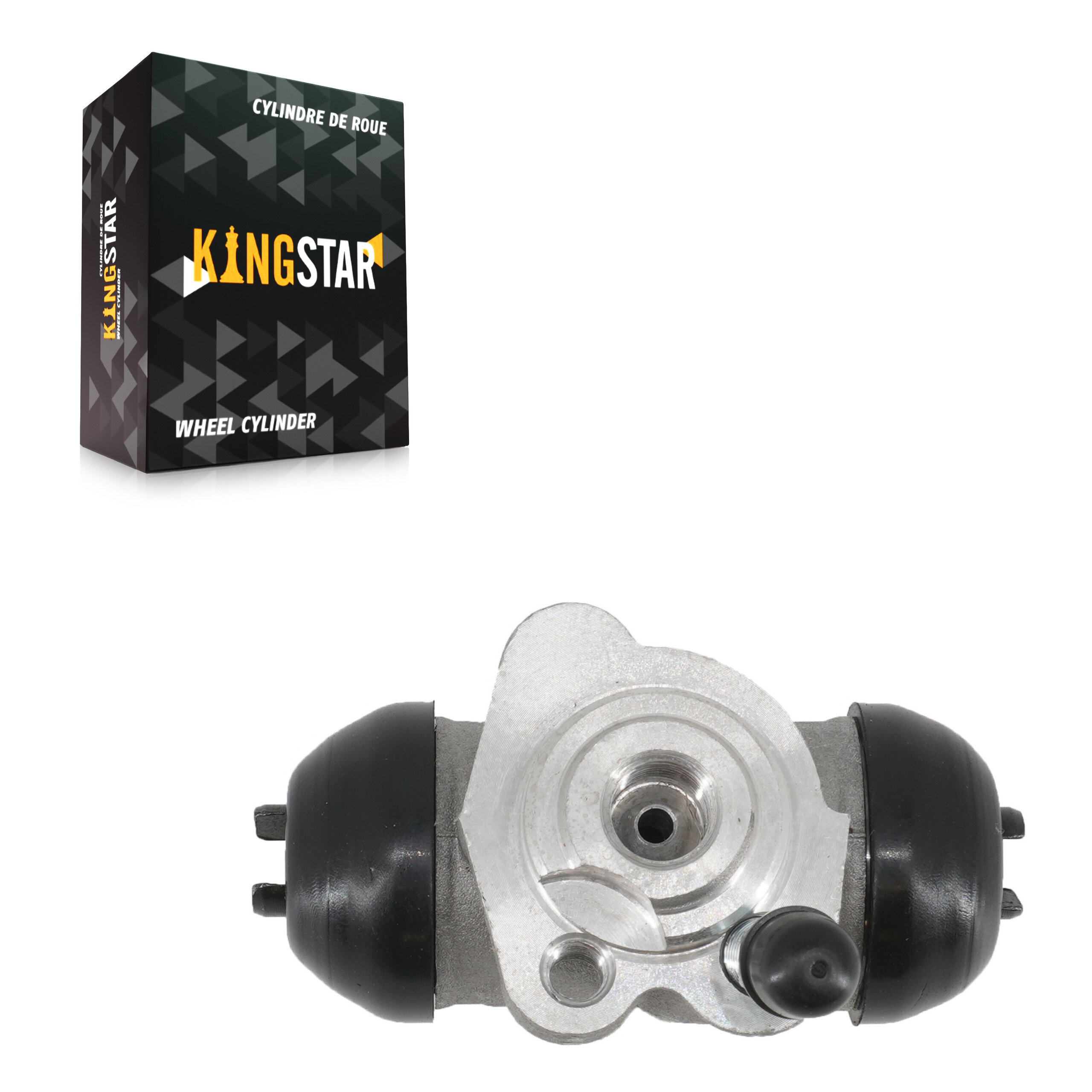

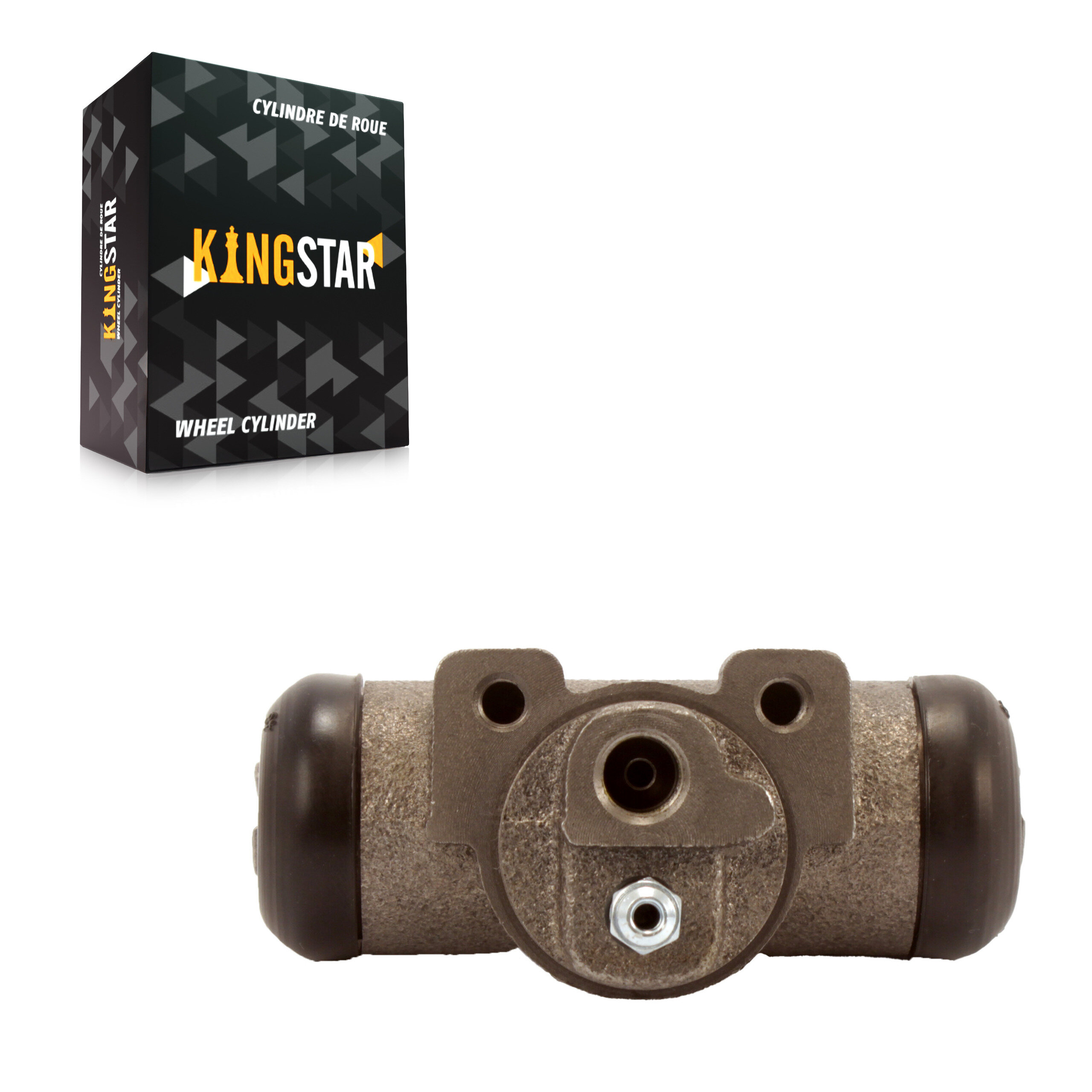

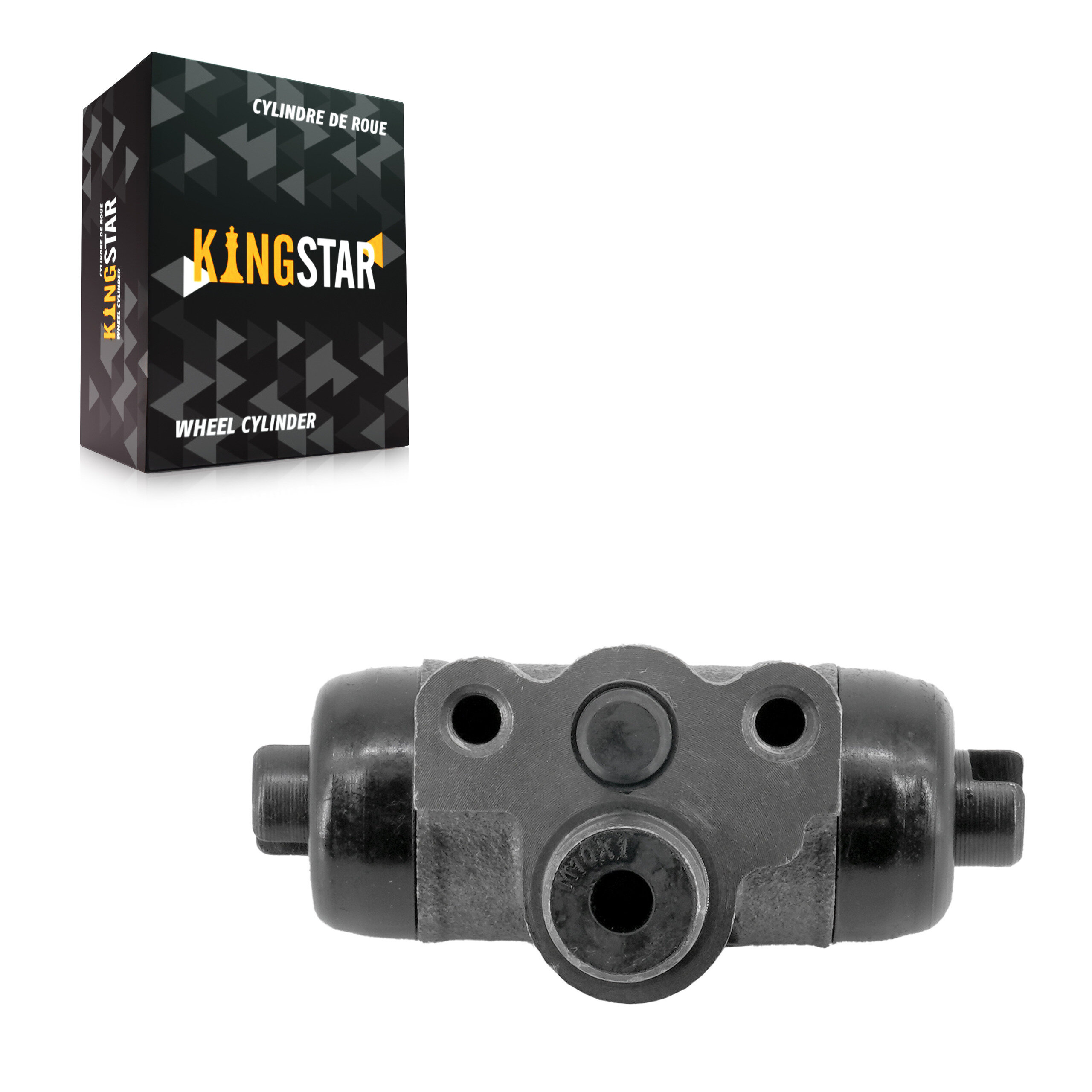

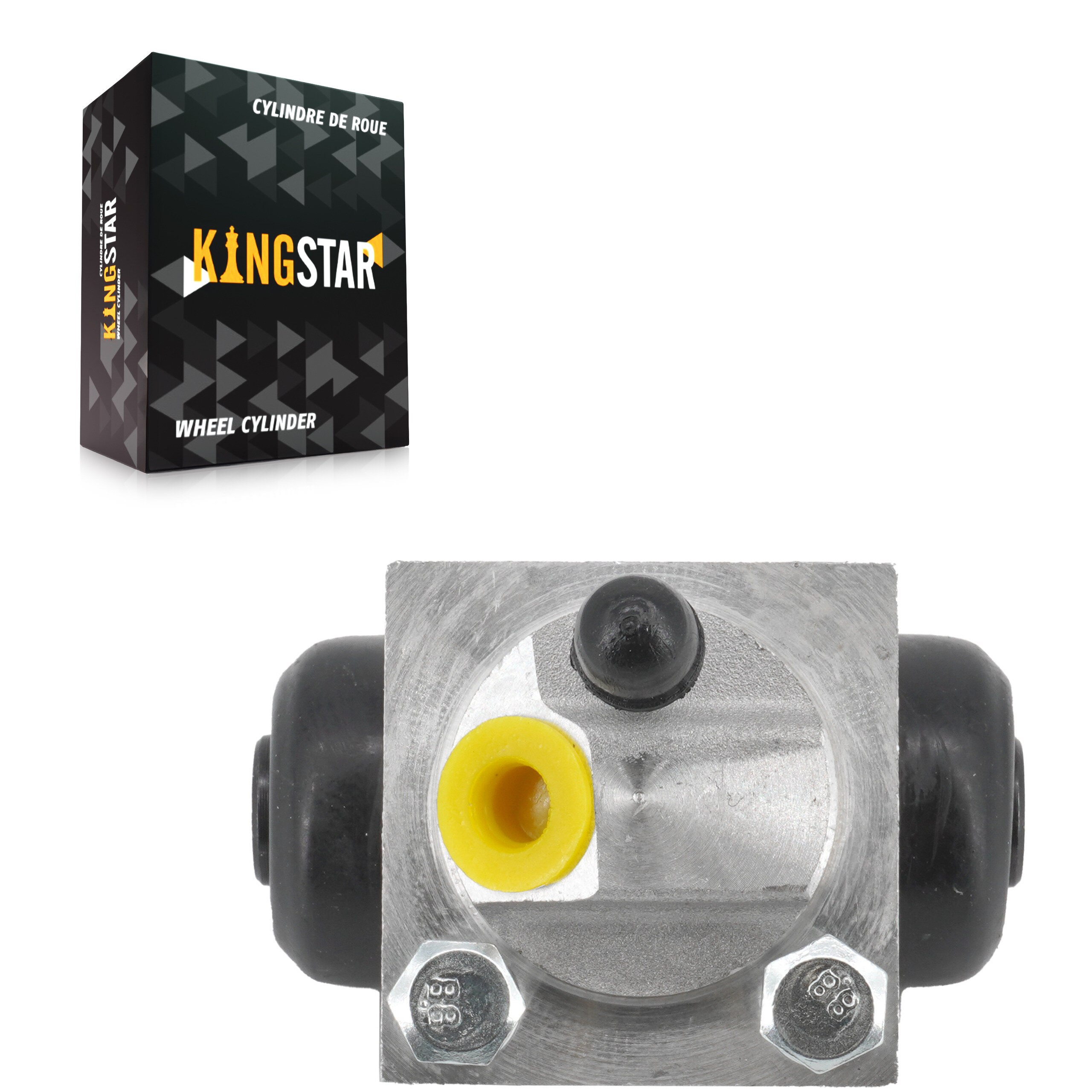

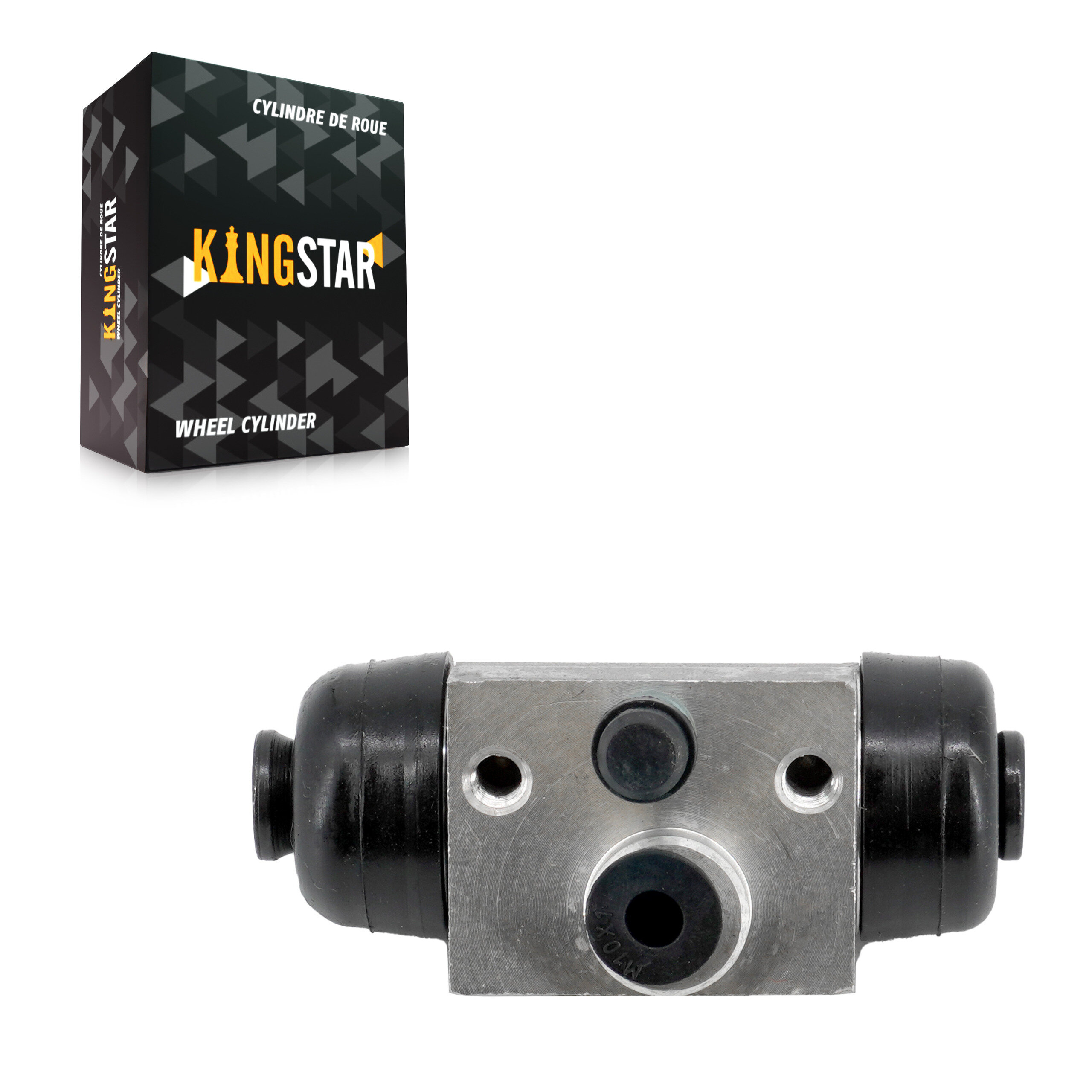

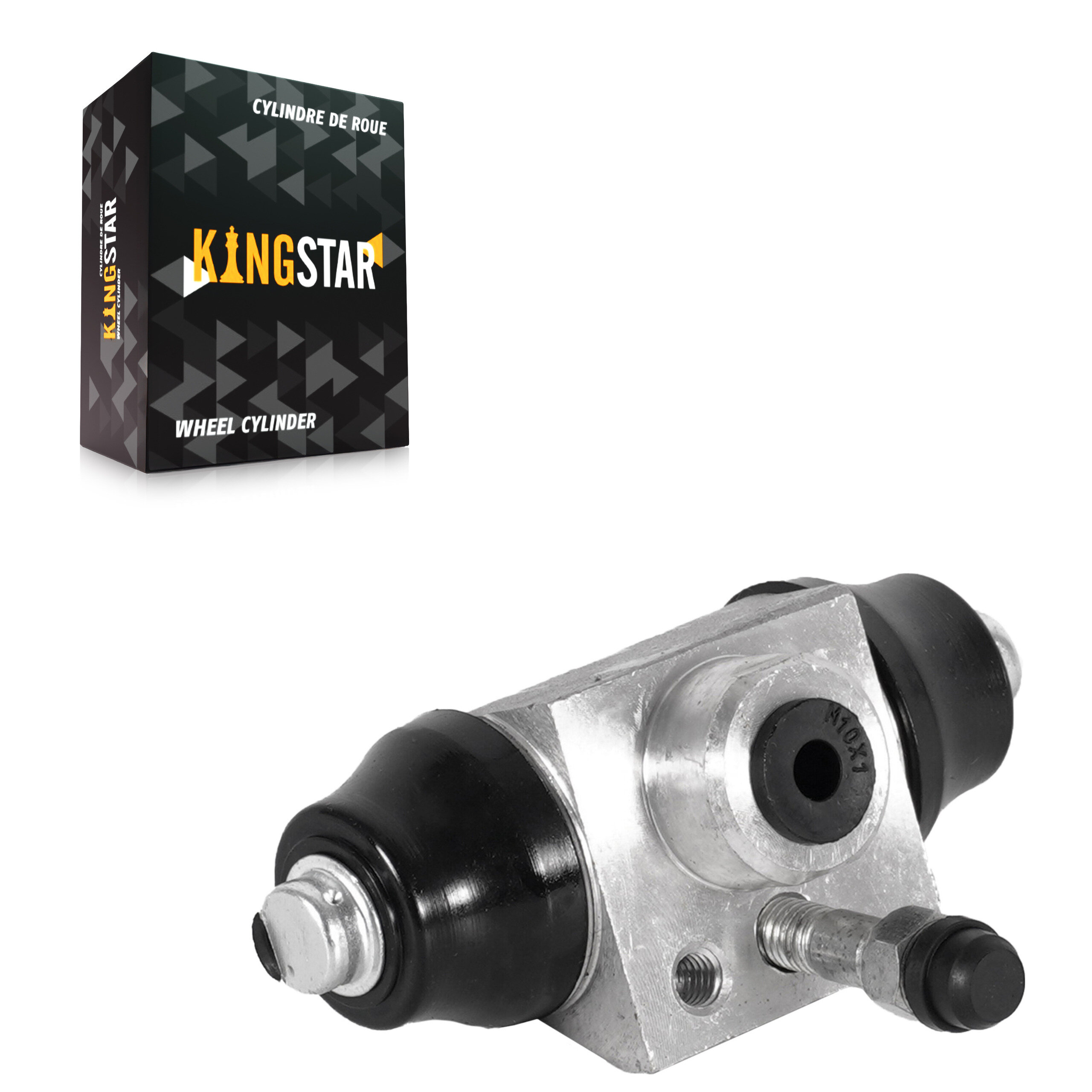

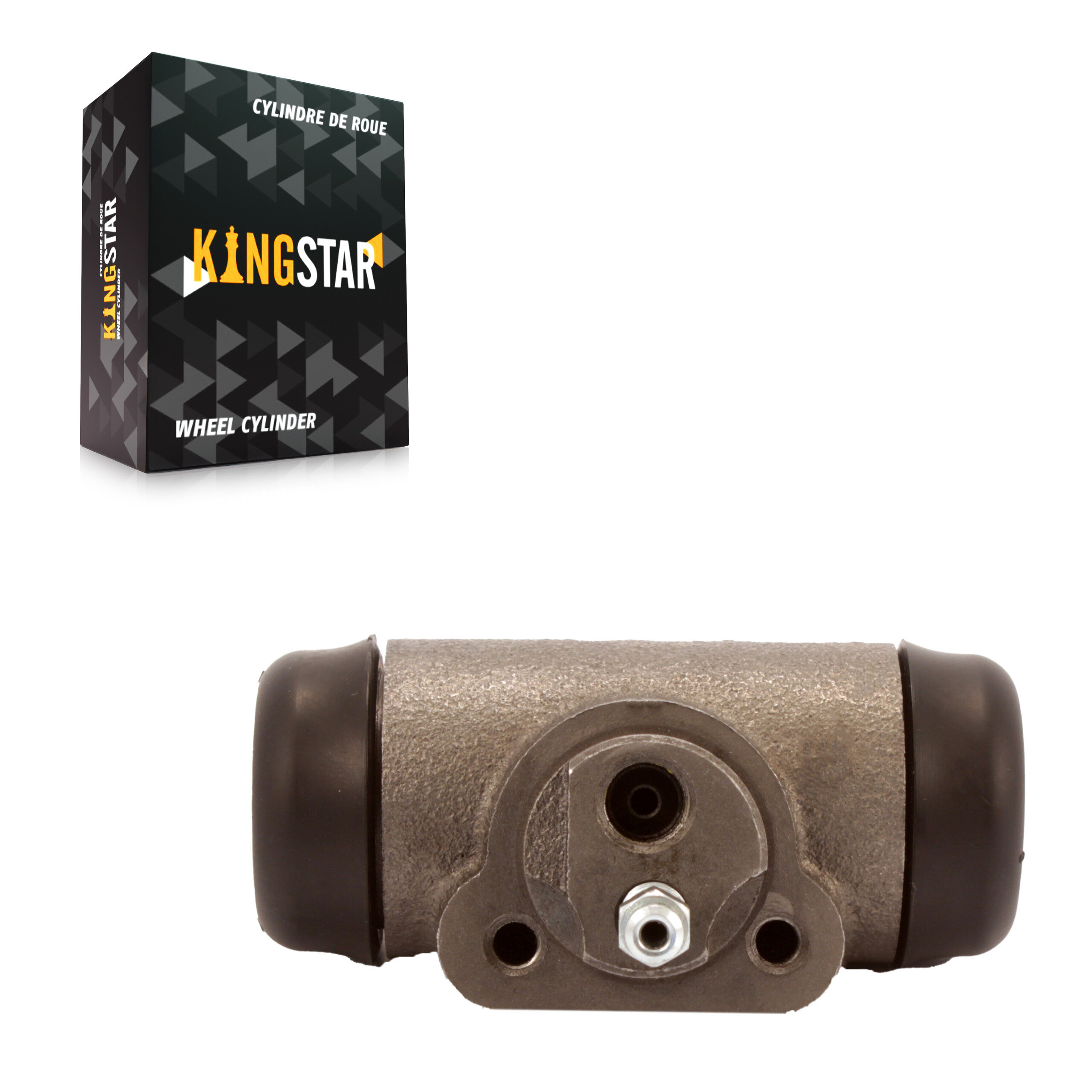

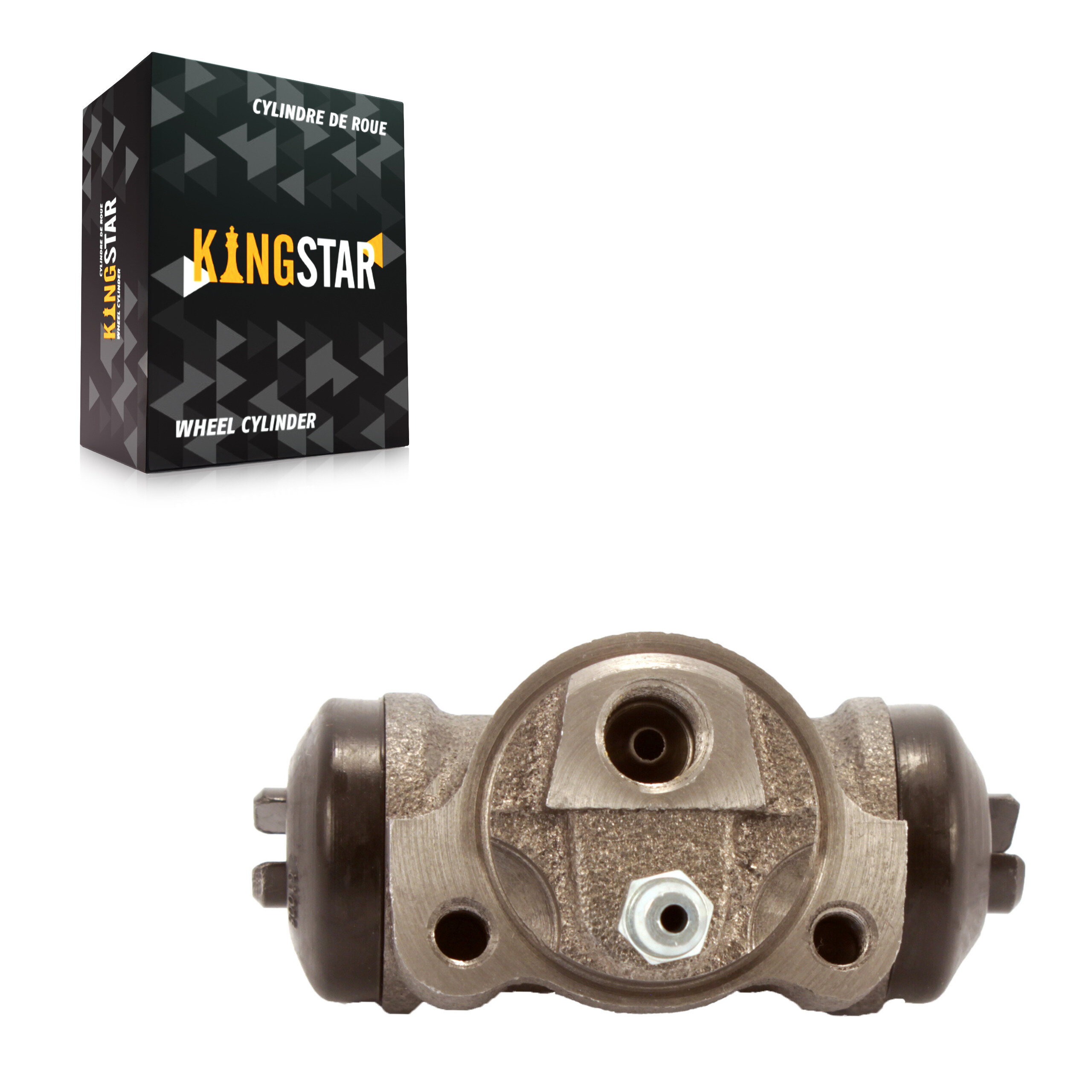

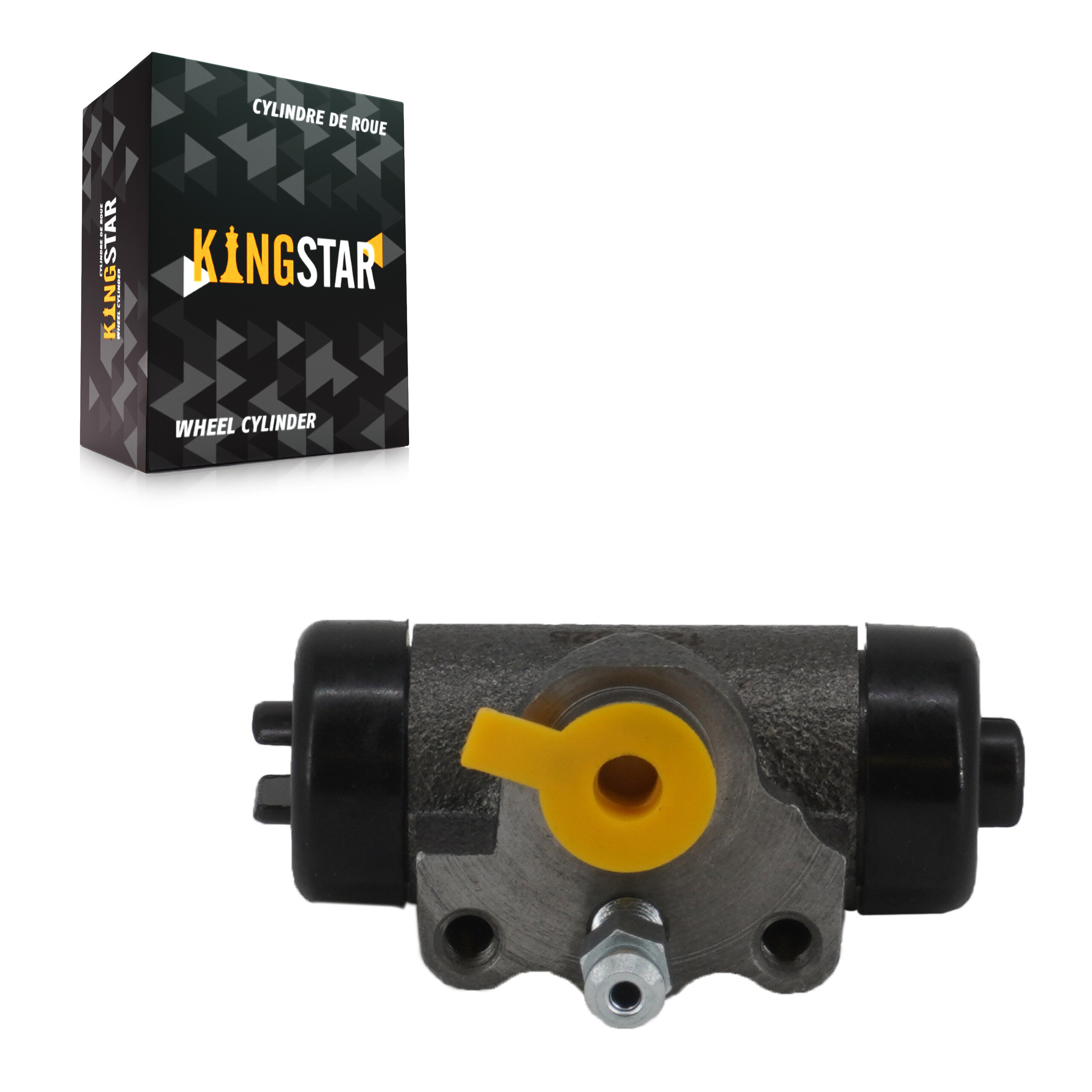

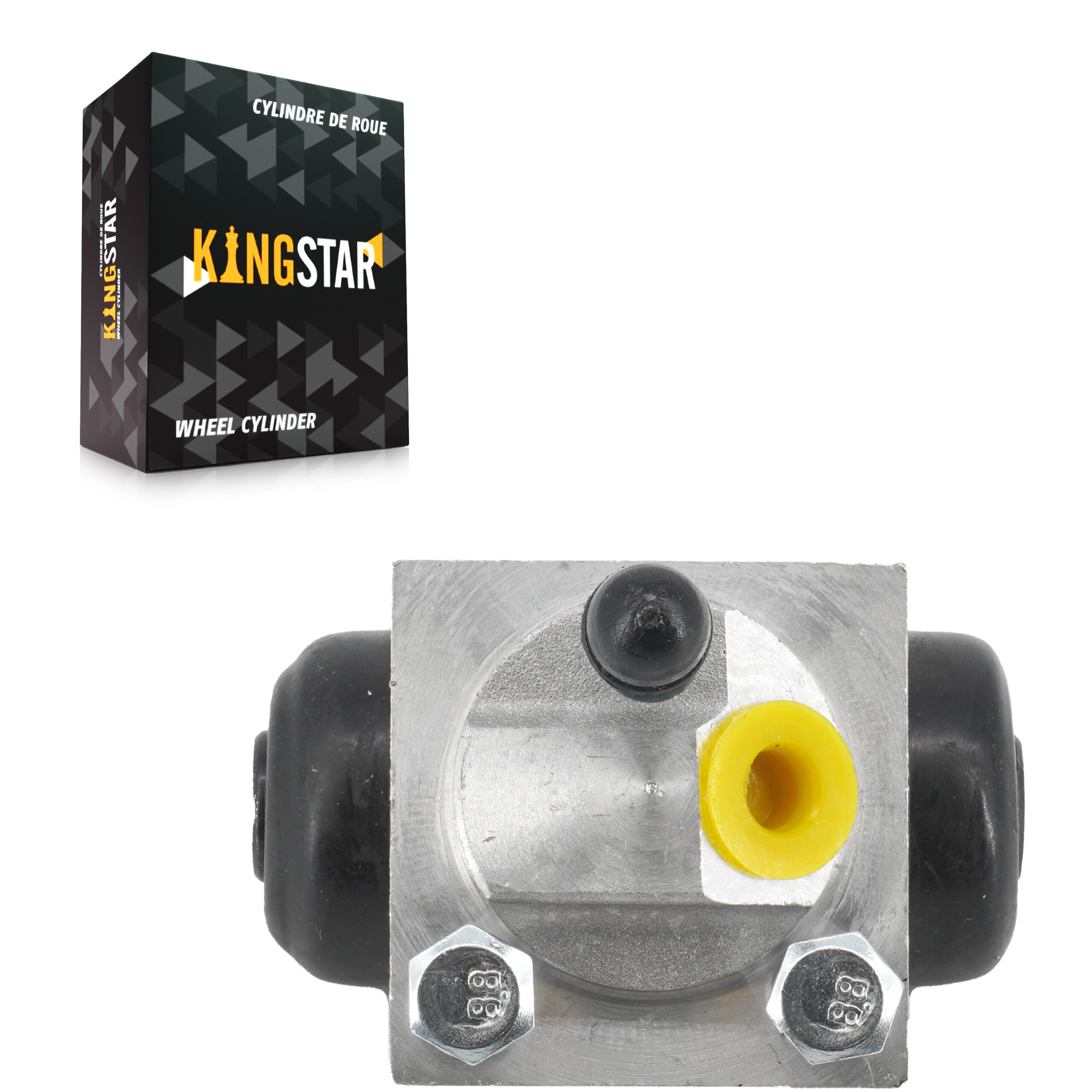

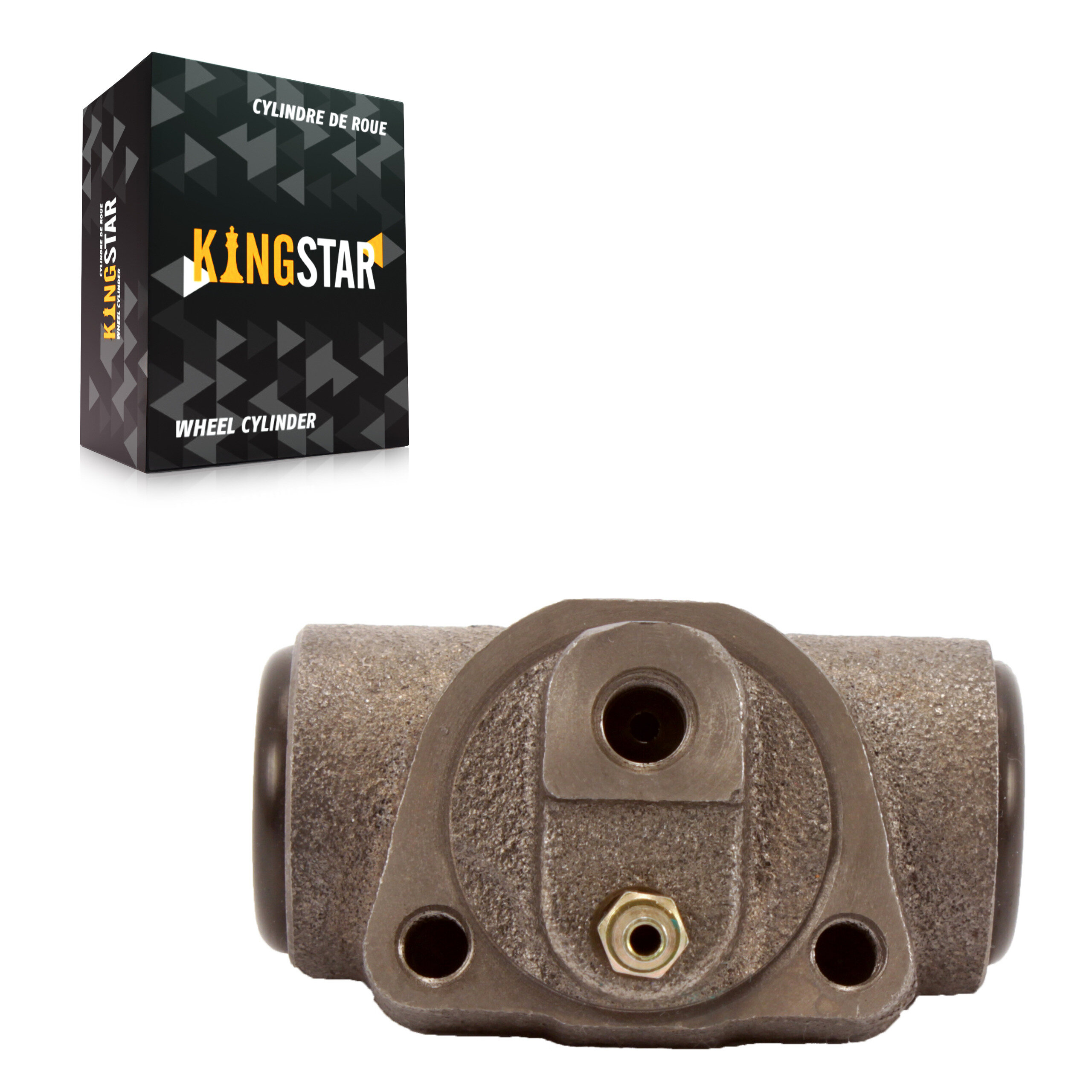

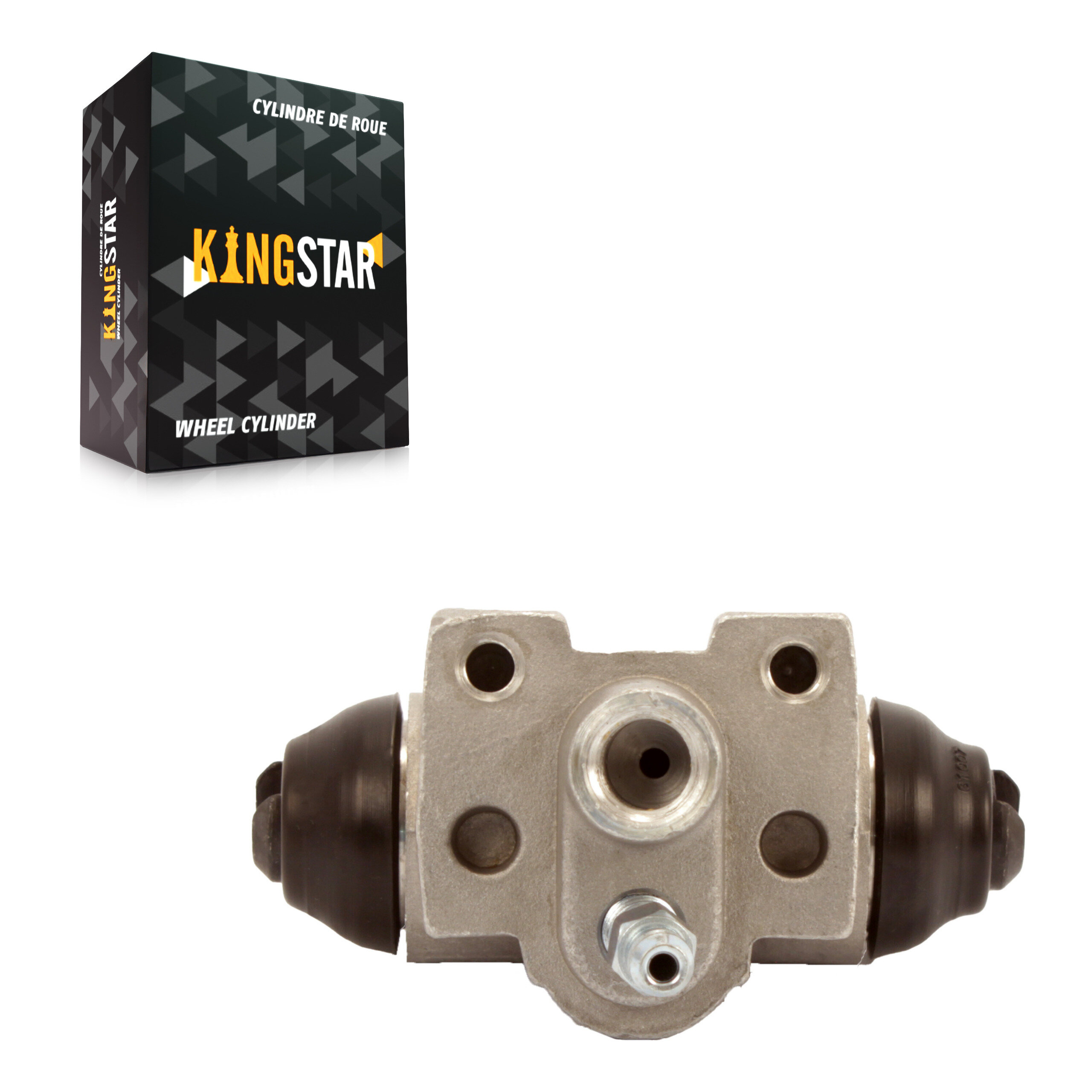

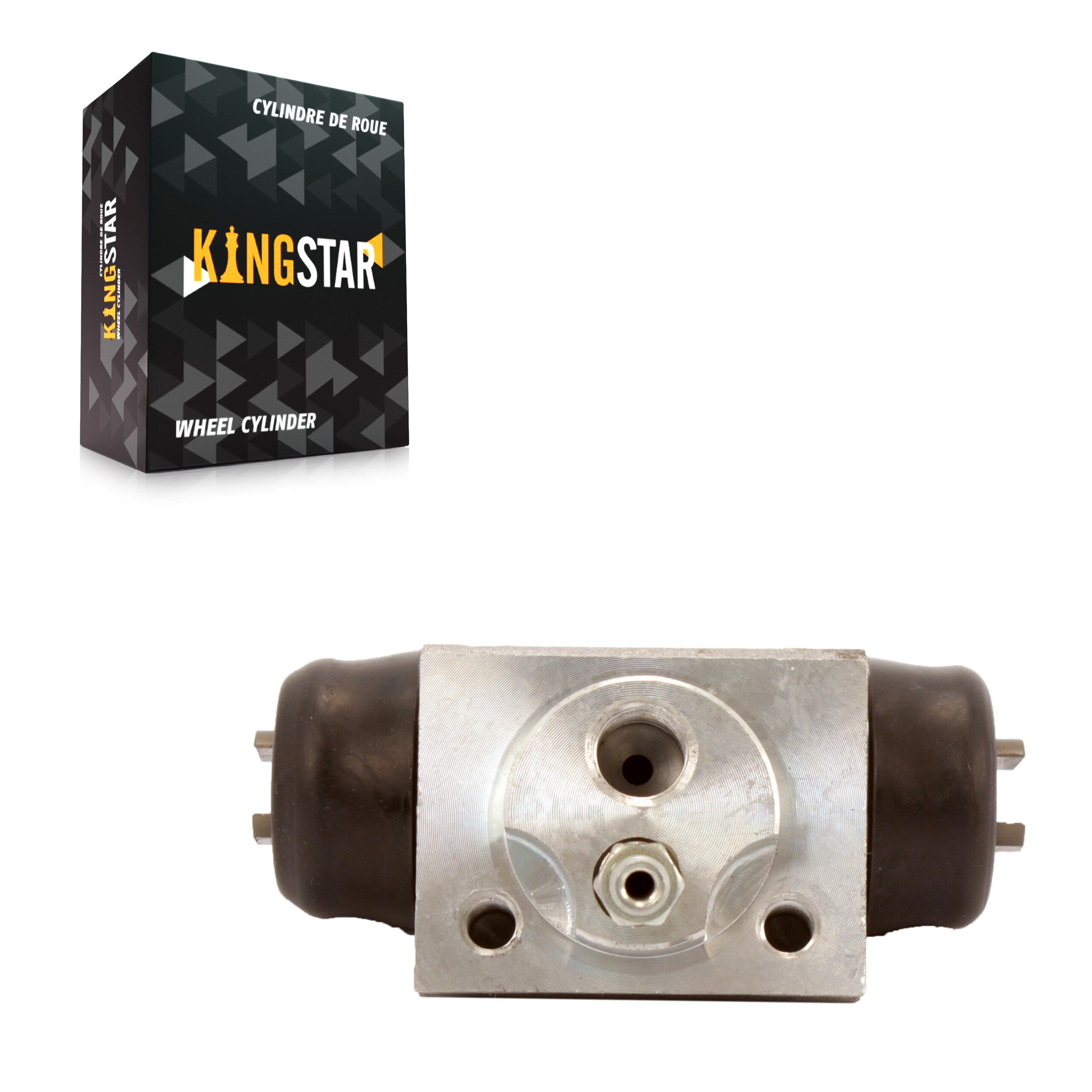

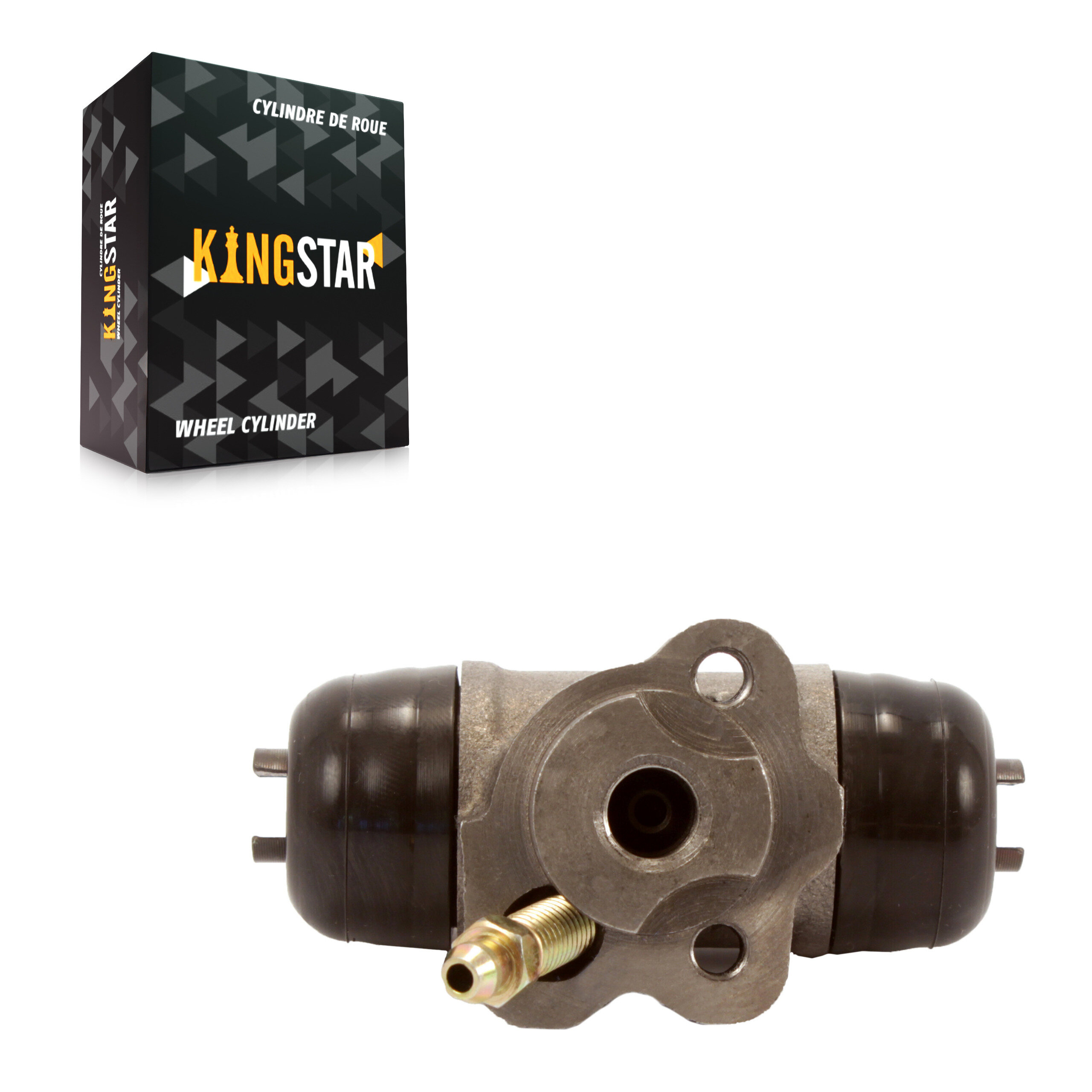

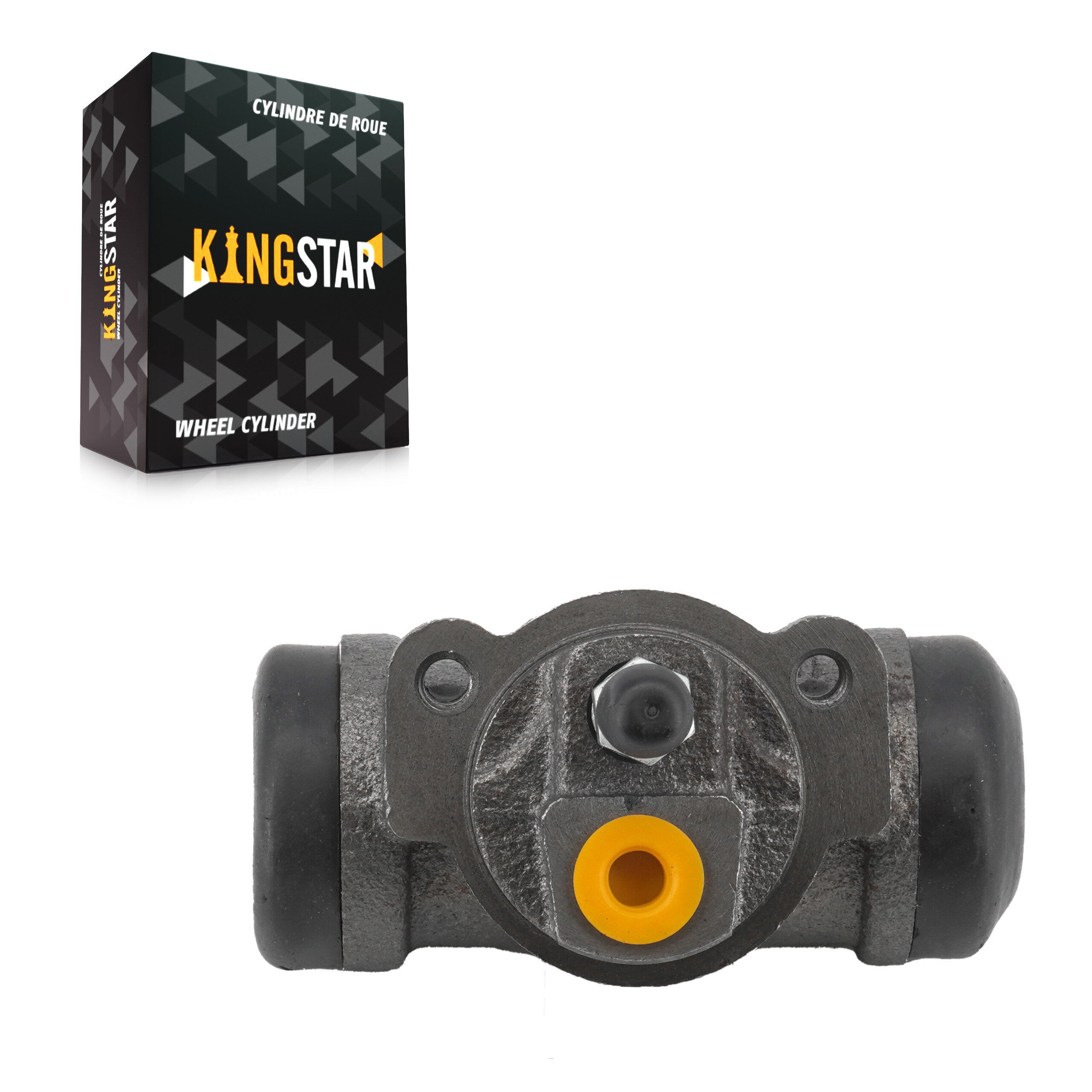

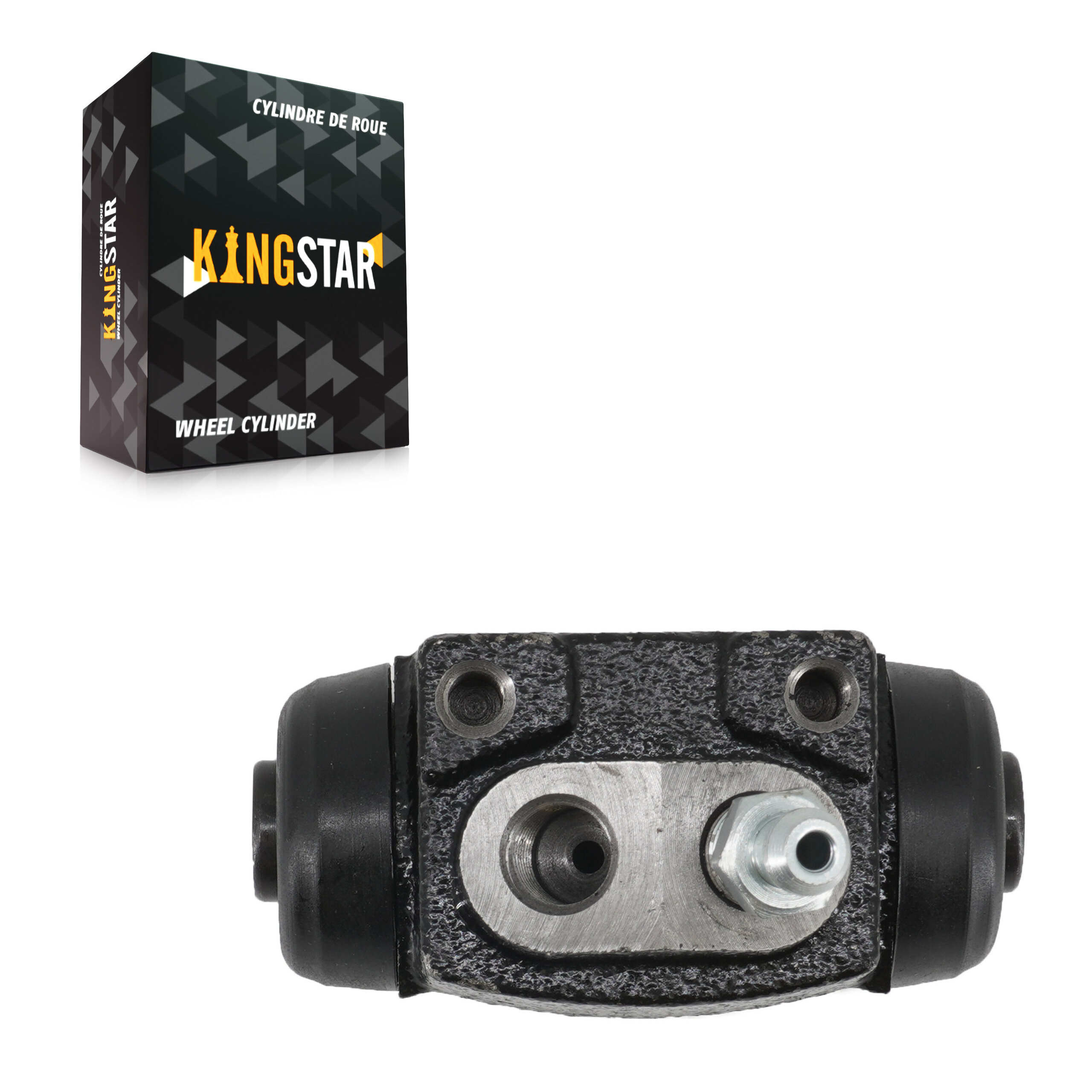

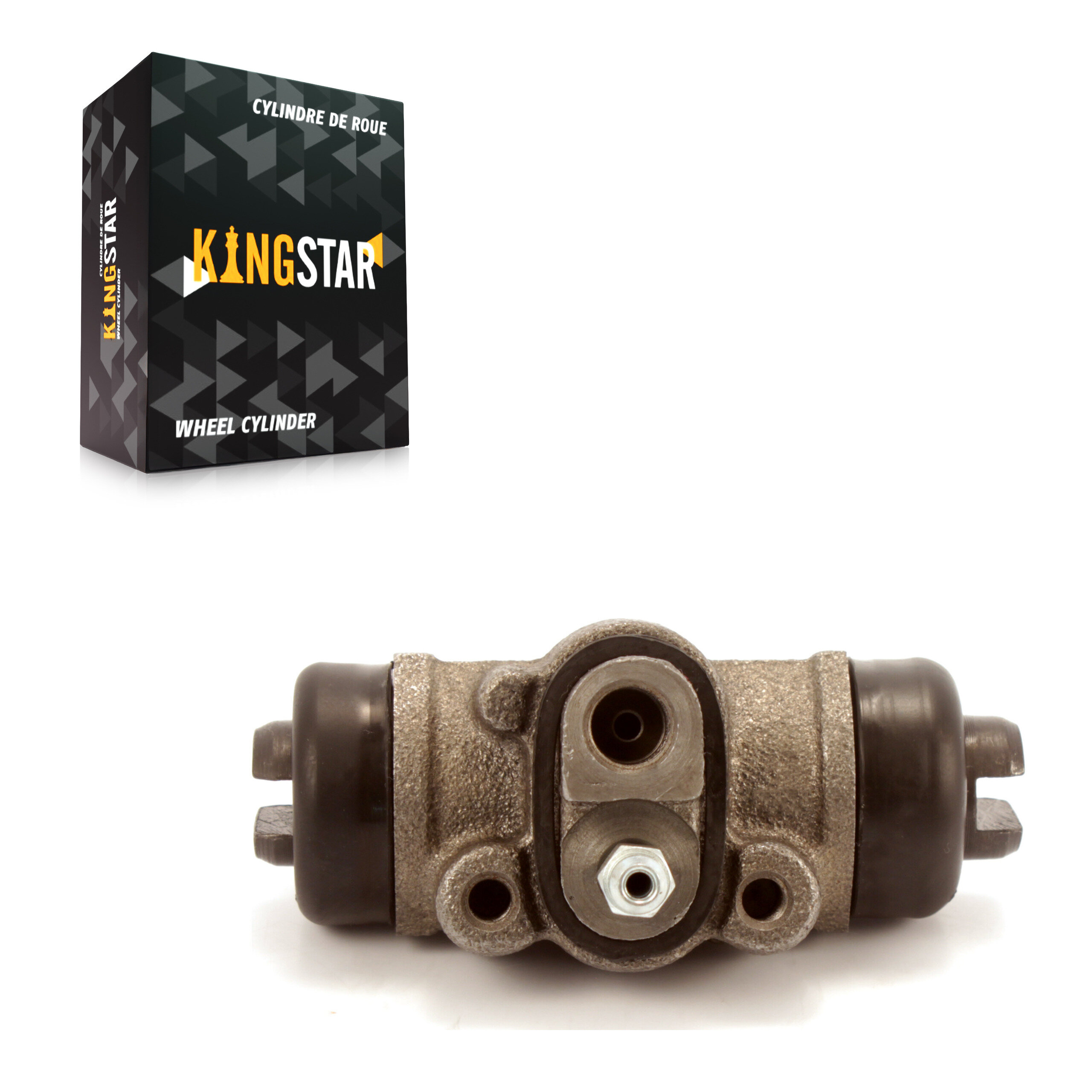

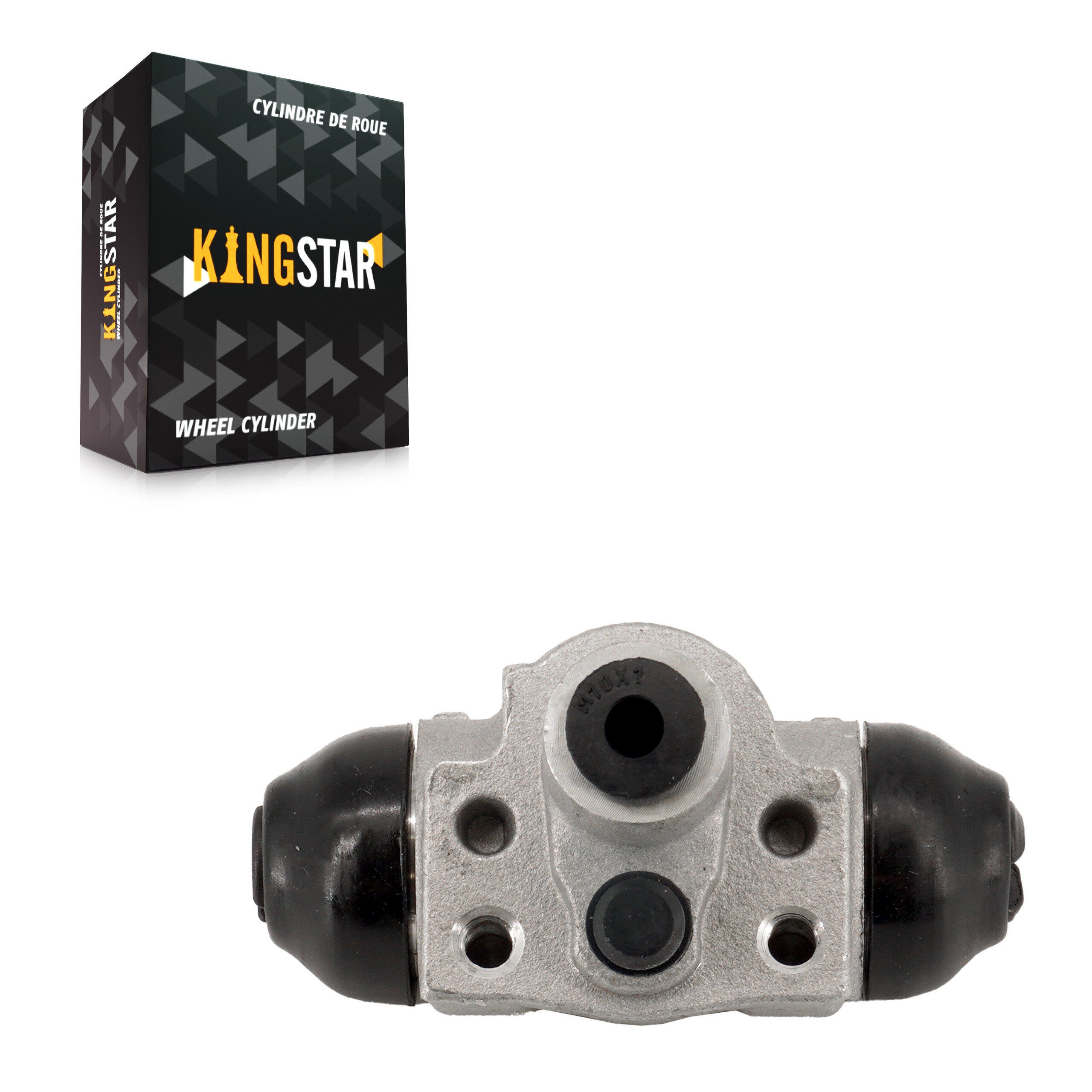

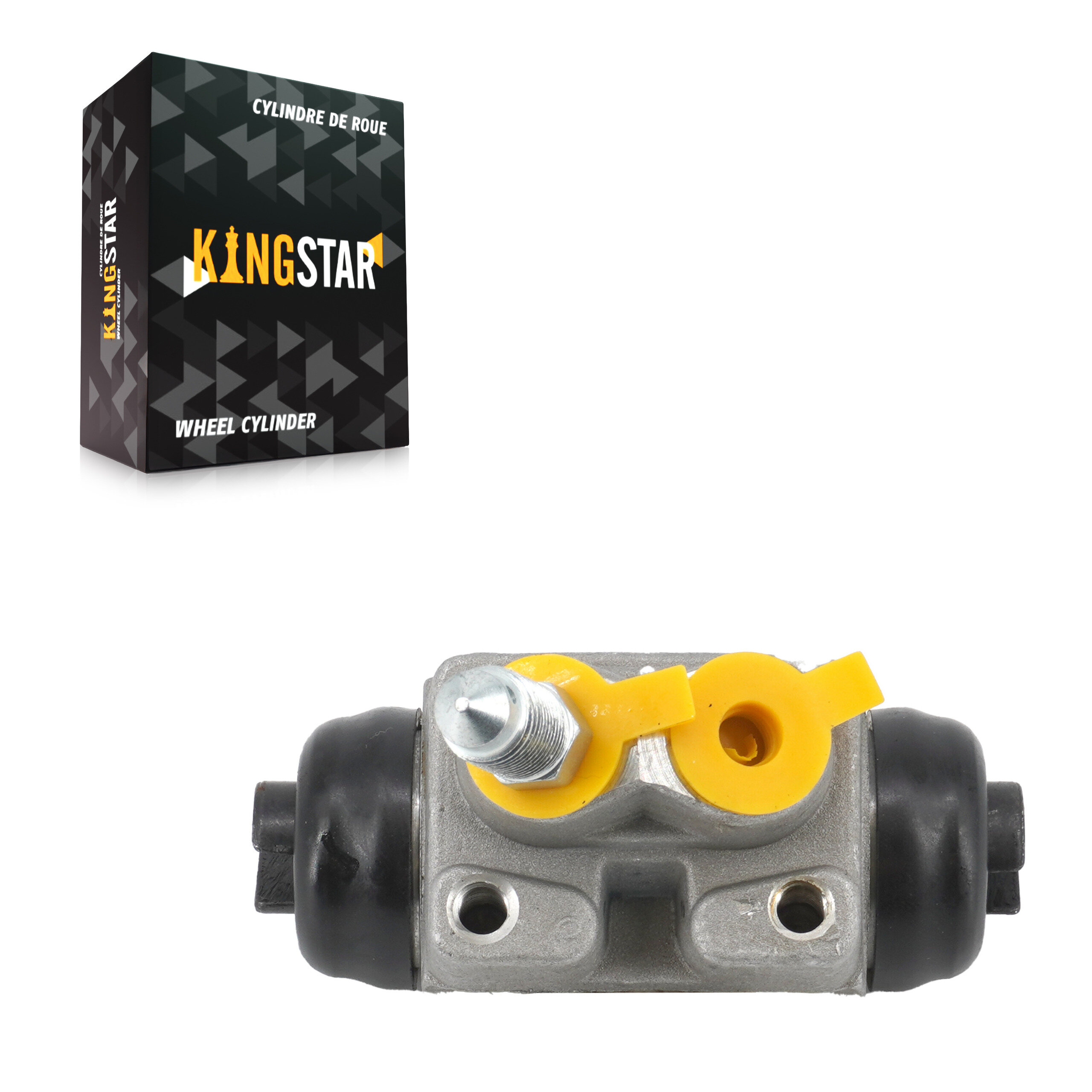

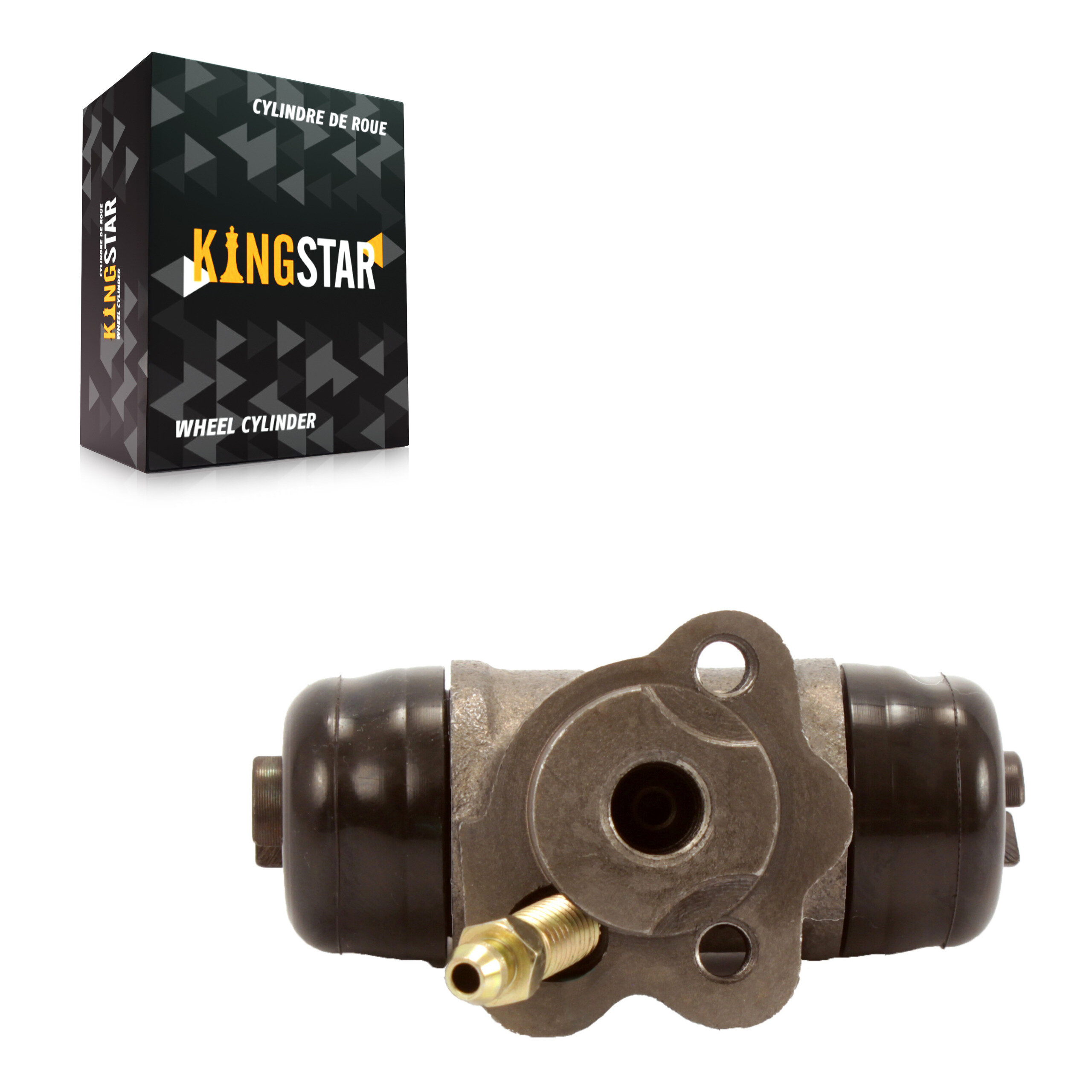

A drum brake wheel cylinder is a small hydraulic cylinder, aluminium or cast-iron housing, containing two opposed pistons, each sealed with a rubber cup and protected by a rubber dust boot. Brake fluid enters through a central port and acts on both pistons simultaneously, pushing them in opposite directions to engage the primary and secondary shoes. A bleeder screw on the cylinder body allows air to be purged from the circuit during brake bleeding procedures.

Signs of a Failing Drum Brake Wheel Cylinder

• Brake fluid visible on the inner surface of the drum or coating the brake shoes, the definitive sign of a leaking cylinder
• Soft or gradually lowering brake pedal, active fluid loss reducing hydraulic pressure in the circuit
• Vehicle pulling to one side during braking, uneven actuation between cylinders on opposite sides of the axle
• Spongy brake pedal caused by air entering the hydraulic circuit through a leaking piston seal
• Brake drag and excessive heat at one wheel, seized cylinder piston keeping shoe engaged
• Brake fluid level dropping in the reservoir without visible external leaks elsewhere

Why Wheel Cylinders Fail Earlier on Canadian Vehicles

Drum brake wheel cylinders are particularly vulnerable to corrosion in Canadian road salt conditions. Salt water penetrates the dust boots over time, attacking the cylinder bore surface and pitting the metal. Once the bore is pitted, new piston cup seals cannot maintain a leak-free seal regardless of quality, the bore damage is the failure, not the seals. Internally corroded cylinders must be replaced, not rebuilt. Vehicles in high-salt urban environments, Toronto, Montreal, Ottawa, Calgary, often require wheel cylinder replacement on the same service interval as brake shoes.

Why GeoBrakes for Drum Brake Wheel Cylinders?

GeoBrakes stocks both new OEM-specification wheel cylinders and quality remanufactured units. New cylinders are the stronger choice for vehicles in high-corrosion environments or where the original bore condition was compromised. Remanufactured units offer excellent value for vehicles in moderate conditions where the original bore was sound. Our vehicle selector confirms the correct cylinder, right bore diameter, port location, and mounting configuration, for your drum brake assembly before purchase. Pair with brake shoes, a hardware kit, and a drum for a complete rear drum service in one order.

Frequently Asked Questions About Drum Brake Wheel Cylinders

Q: Can I drive with a leaking wheel cylinder?

A: No. A leaking cylinder actively loses hydraulic pressure from the brake circuit, reducing stopping force over time. Brake fluid that reaches the shoes renders the friction material ineffective, oil-contaminated shoes cannot generate reliable braking force. A leaking wheel cylinder is an immediate safety concern that requires urgent attention.

Q: Should I replace both wheel cylinders at the same time?

A: Yes. If one cylinder has leaked or seized due to age and corrosion, the cylinder on the opposite side has experienced identical conditions and is at a similar stage of deterioration. Replacing both ensures balanced hydraulic pressure and avoids a second service call within months.

Q: Do I need to bleed the brakes after replacing a wheel cylinder?

A: Yes. Replacing a wheel cylinder opens the hydraulic circuit, allowing air to enter the system. After installation, the entire rear brake circuit must be bled, starting from the furthest point from the master cylinder, to remove all air and restore a firm, consistent brake pedal.
